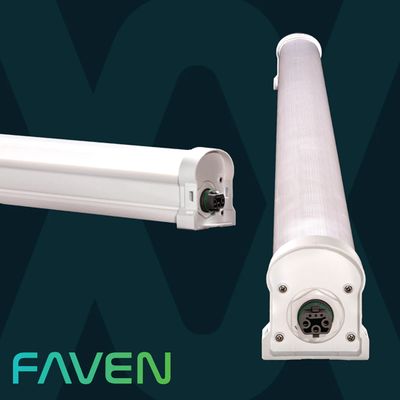

Faven R8 Under Canopy Light for LED rooms

Faven Lighting is revolutionizing Controlled Environment Ag with under canopy lighting (UCL). These 46" LED bars each draw 120 watts and illuminate the underside of the plants utilizing parallel rows of lights in a 4' or 5' wide tray. Under canopy VPD is improved, the entire plant grows faster and larger, and pigmentation & terp expression becomes more uniform. On average, 30% yield increase on dry harvest weight, with higher % of jar-ready Grade A (92% on avg). Also labor savings from reduced nursery plant count, less under canopy stripping, and less time sorting final products.

Compared to other UCL and Inter-canopy light options, Faven has many unique features such as:

• Convex lens on LED diodes spreads light 150 degrees
• Frosted light cover diffuses the light, similar to greenhouse films, for reduced shadowing
• R6 model is tuned for HPS grows. R8 spectrum is tuned for rooms with LED over-canopy lights.
• IP-66 waterproof / dustproof, easy to clean
• Passive heat dissipation design radiates only 80F temp at surface (not HOT to touch!)
• Power cord has pigtail for RJ-14 digital timing & dimming control. RJ signal passes through click-together lighting strings so the first light in a string controls all. Trolmaster with LMA-14 lighting adapter.
• 120V, 240V, 277V auto-sensing/auto-switching power

To configure your rooms, note that 10 lights can be strung at 120V, 16 @ 240V and up to 20 per string @277V. For example, on a 4ft x 28ft table, you would run a total of 14 lights. From a 240V or 277V power cord, you can connect two rows of 7 lights with one interconnect cable to loop-back the second row. If this was a 120V installation, you would use two, 120V power cords and no interconnect cable. You can daisy chain a Trolmaster LMA-14 (Line 2) to the start of each new string (RJ-14 to each power cord). Start at 40% intensity on week 1 flower, increasing 20% weekly to 100% in flower weeks 4+.

Note too that we recommend starting with at least one irrigation zone or one flower room. Faven UCL lights will cause increased transpiration rates and plants will be hungrier ("beasting" our clients say).

Call us if/when any questions. Happy to help configure and suggest optimal implementation strategies.

Please order in quantities of 4/box for USA shipping purposes, or any quantity for pickup or local deliveries.

This is the R8 light for LED over-canopyu rooms. You'll also need at least one power cord and may also need an interconnect cord. Trolmaster lighting and climate control systems are also available from GrowBIG.
